Pioneer SX-780 Receiver and Pioneer CS-31A Speakers - $750 (Moscow)

‹ image 1 of 21 ›
Pioneer SX-780 Receiver and Pioneer CS-31A Speakers 1
Pioneer SX-780 Receiver and Pioneer CS-31A Speakers 1 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 2 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 3 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 4 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 5 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 6 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 7 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 8 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 9 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 10 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 11 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 12 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 13 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 14 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 15 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 16 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 17 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 18 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 19 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 20 thumbnailPioneer SX-780 Receiver and Pioneer CS-31A Speakers 21 thumbnail
PO Box 8909 Moscow
condition: good
make / manufacturer: Pioneer
model name / number: SX-780 and CS-31A

QR Code Link to This Post

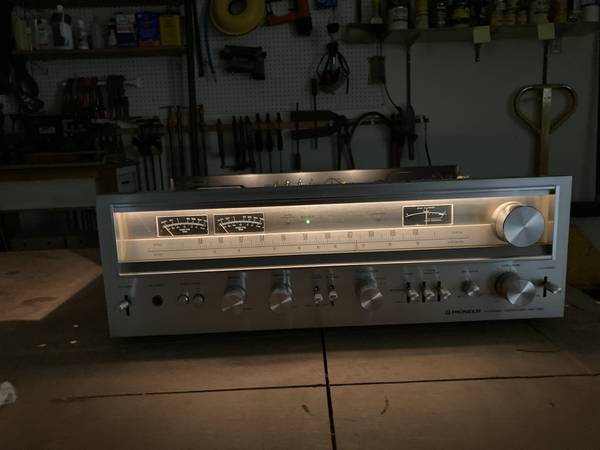

Vintage Pioneer SX-780 Receiver
The SX-780 is rated at 45 watts per channel.

You can come look and listen.

Vinyl, not wood, veneer.

The SX-780 features a high output, low distortion power amplifier, a high fidelity equaliser amplifier with low noise and high gain, a high stability tuner section, tone controls with tone defeat function, built in protection circuits and independent power meters.
Specifications
Tuning range: FM, MW
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 80kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 76dB (MM), 95dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 5 x FWT, 11 x IC, 26 x transistors, 22 x diodes
Dimensions: 480 x 140 x 320mm
Weight: 11.2kg
Accessories: FM T-type antenna

These beautiful Walnut veneered speakers are 3-way units that are rated at 40 Watts of max power. They include a 12" Pioneer woofer with AlNiCo magnet, a 5" Pioneer mid-range in-a-can with ALNICO magnet and a Pioneer exponential horn tweeter. There is a large rectangular port at the bottom of the front baffle.

Specifications
Enclosure
Bass reflex type
Woofer
12-inch, PW-302A
Mid Range
5-inch Squawker, PM-122A
Tweeter
Horn Type, PT-205
Impedance
16 Ohms
Frequency Response
40 - 20,000 Hz
Crossover Frequencies
800 Hz, 6,000 Hz
Sensitivity
102 dB/Watt
Max Power Output
40 Watts
Normal Power Output

20 Watts
3 way
Dimensions
26 x 15-1/2 x 12-3/8 inches
Weight
39 lbs each
