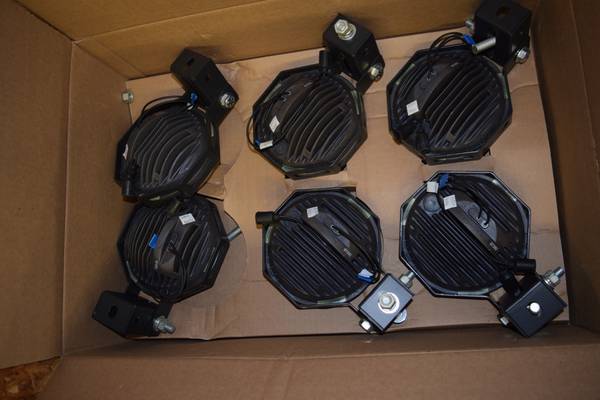

Truck-Lite LED 24V Area Lighting NEW KIT HMMWV Flood Spot w/ Hardware
QR Code Link to This Post
NSN 6220-01-563-8562 LED Area Lighting Kit (JERRV, RG31 & RG33 Vehicles), 24v
Local pick up Grangeville, Idaho or Shipping quotes on request. $4,000.
MATERIAL:
• Polycarbonate lens
• Die cast aluminum housing
• 16 gauge SXL wires, hard wired w/ connectors
• Stamped steel universal bracket & stainless
steel hardware
LIGHT SOURCE:
• 10 24v light emitting diodes (LEDs)
• Amperage draw: 1.4a per lamp, 22.4a per kit
• Lumen output: 1,300 per lamp, 20,800 per kit
• Candela output: 33,000 per lamp, 500,000 per kit
FEATURES & BENEFITS:
• Developed with high output LEDs for route clearance missions and situational operations
• Offers brighter, crisper and whiter light output with exceptional projection distance
• Kits contain 16 LED lamps, harness, mounting bracket and switches for left/right side and forward lighting
• Advanced use of White LED Technology offers longer life (250x longer life than comparable incandescent lamps)
• 100% Operational Readiness with overvoltage protection to 600v
• Universal bracket design accommodates installation on any bolt to position where preferred
• Switches are integrated into dash with no external switch box
• Harness designed in modules for ease of repairability, with components segmented for battery harness,
cabin harness, left & right light banks and top and bottom front harnesses
07385/07399 KIT CONTENTS:
12 07392 Flood lamps
2 07397 Spot lamps
2 07382 Auxiliary lamps
16 97327 Univ. mounting bracket
NSN# 2590-01-574-9978
16 97328 Bar armor back plate
NSN# 2590-01-578-1644
16 97329 Base mounting bracket
1 97323 Circuit breaker
NSN# 5925-01-576-1416
1 97324 Lighted rocker switch
NSN# 5930-01-576-1419
1 97325 Lighted rocker switch
NSN# 5930-01-576-1423
1 97326 Lighted rocker switch
NSN# 5930-01-576-1424
1 07148 Front HL harness drop
NSN# 6150-01-575-7624
1 07149 Roadside harness
NSN# 6150-01-575-9017
1 07150 Curbside harness
NSN# 6150-01-575-7631
1 07152 6-cond. main harness
NSN# 6150-01-575-7641
1 07155 Breaker switch jumper
NSN# 5995-01-576-1500
1 07156 Breaker switch jumper
NSN# 5995-01-575-9784
1 07157 Breaker switch jumper
NSN# 5995-01-576-1508
1 07158 Battery-breaker jumper
NSN# 5995-01-576-1523
1 07159 Chassis ground switch
NSN# 5999-01-576-1490
1 07153 Batt. cable (for 07385)
NSN# 6150-01-575-7647
1 07154 Batt. cable (for 07399)
NSN# 6150-01-574-5902
